3 db AIS fibreglass antenna 1,0 m (3.3′) length
وصف
SCOUT has designed the KS-30 antenna to be tuned on the AIS frequencies.
Extremely light and performing, the KS-30 is built with a 1,4 mm thick fibreglass whip that gets fully foam injected with the special Scout 100% waterproof technique, and it’s ice white colored with high gloss anti-UV filter to prevent color deterioration. The antenna is supplied with 5m RG-58 MIL cable and 1 PL-259 connector to complete the installation on board.
Technical specifications:
| Frequency | 161.975 MHz / 162,025 MHz |
| Impedance | 50 ohm |
| Electrical length | 1/2 λ |
| V.S.W.R. | < 1,5:1 |
| Polarization | Vertical |
| Gain | 3 dB |
| Max power input | 50 W |
| DC ground | Yes |
| Whip material | Fiberglass |

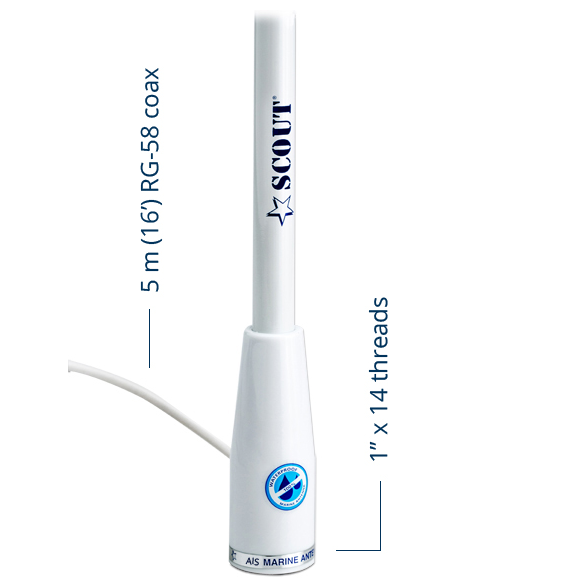

| Coaxial cable | 5 m (16,4′) RG 58 CU MIL |
| Mounting | 1″ x 14 thread |

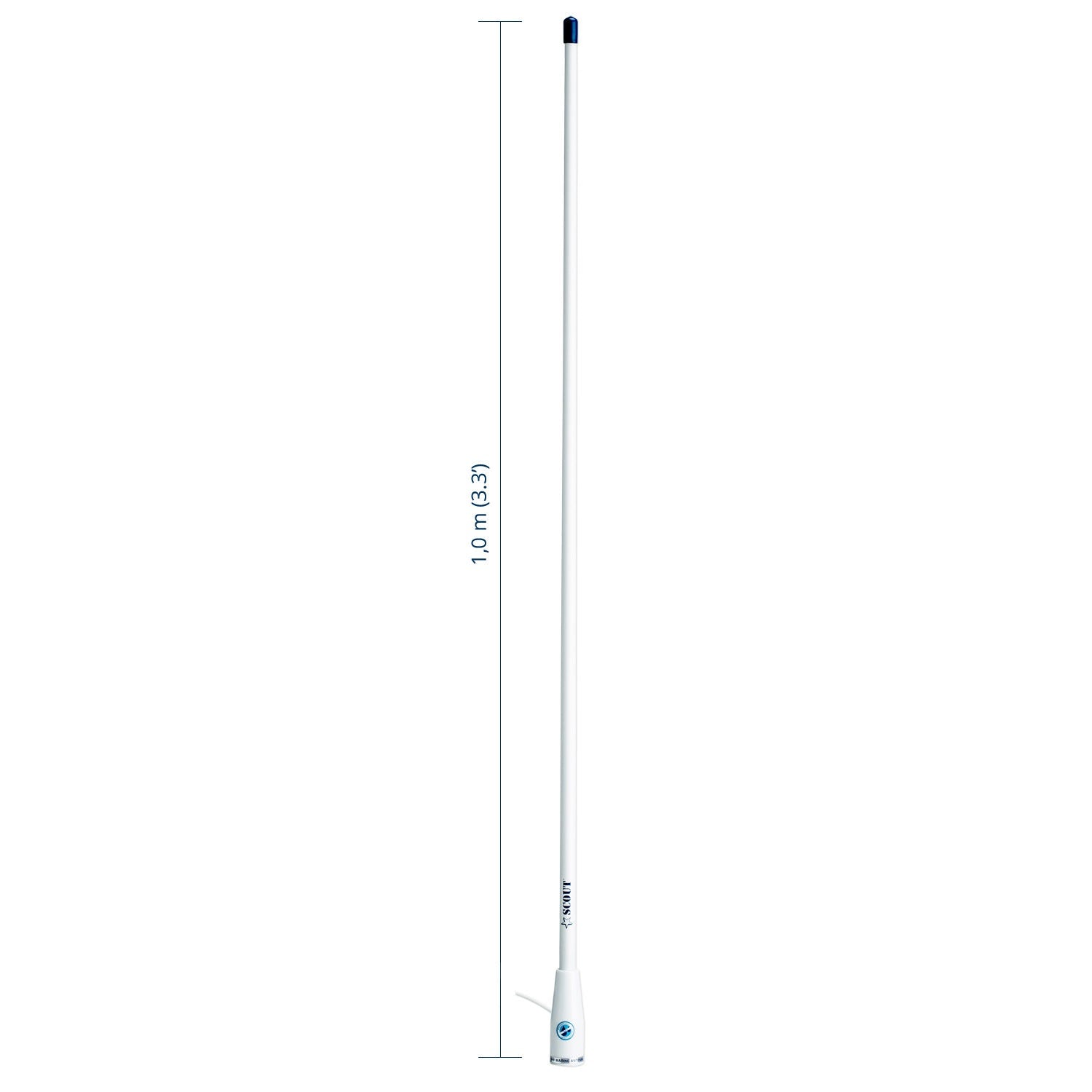

| Length | 1,0 m (3.3′) |
| Weight | 0,39 kilo |
| Code | PF AN NAIS001 |
3 db AIS fibreglass antenna 1,0 m (3.3′) length
سعر البيع25.000 KD
