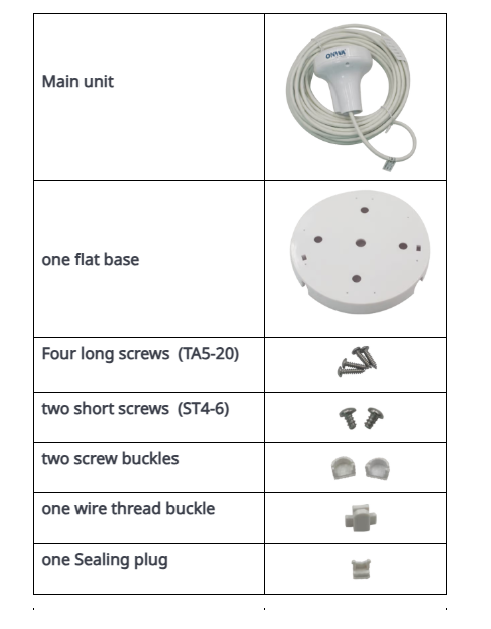

GPS ANTENNA KA09

The KA-09 is a high-performance GPS antenna suitable for a variety of demanding environments. Its design ensures stable operation in all weather conditions, making it ideal for use in ships, vehicles, and other applications requiring precise GPS positioning. Its high gain and low noise characteristics enable it to provide accurate and reliable
positioning information.
Low Noise Amplifier (LNA).
Performance Specifications :
- Gain : 27 ± 2 dB.
- Noise Figure < 1.5 dB.
- Input VSWR : < 2.0.
- Output VSWR : < 2.0.
- Current Consumption : < 30 mA -
Electricalcharacteristics:
- Operating Voltage Range : DC 3~5.5V.
- Positioning Satellites :  GPS, GLONASS, BD (Beidou), GALILEO.
- Amplification (Gain) : 27 ± 2 dB.
- Operating Temperature : -40°C ~ +85°C.
- Storage Temperature : -40°C ~ +90°C.
- Waterproof Rating : IPX7.
Dimensions :  81.7 mm (D) X 91 mm (H).
Output Impedance : 50 ohms.
Mounting : Pole mount to 1”-14 threaded pipe.
RF Cable :  10m RG-59.
Connector : BNC connector supplied as standard.
Enclosure : High compact, corrosion-proof PC (polycarbonate) resin.
Construction : Hermetically sealed, fully waterproof, 95% non-condensing humidity.
