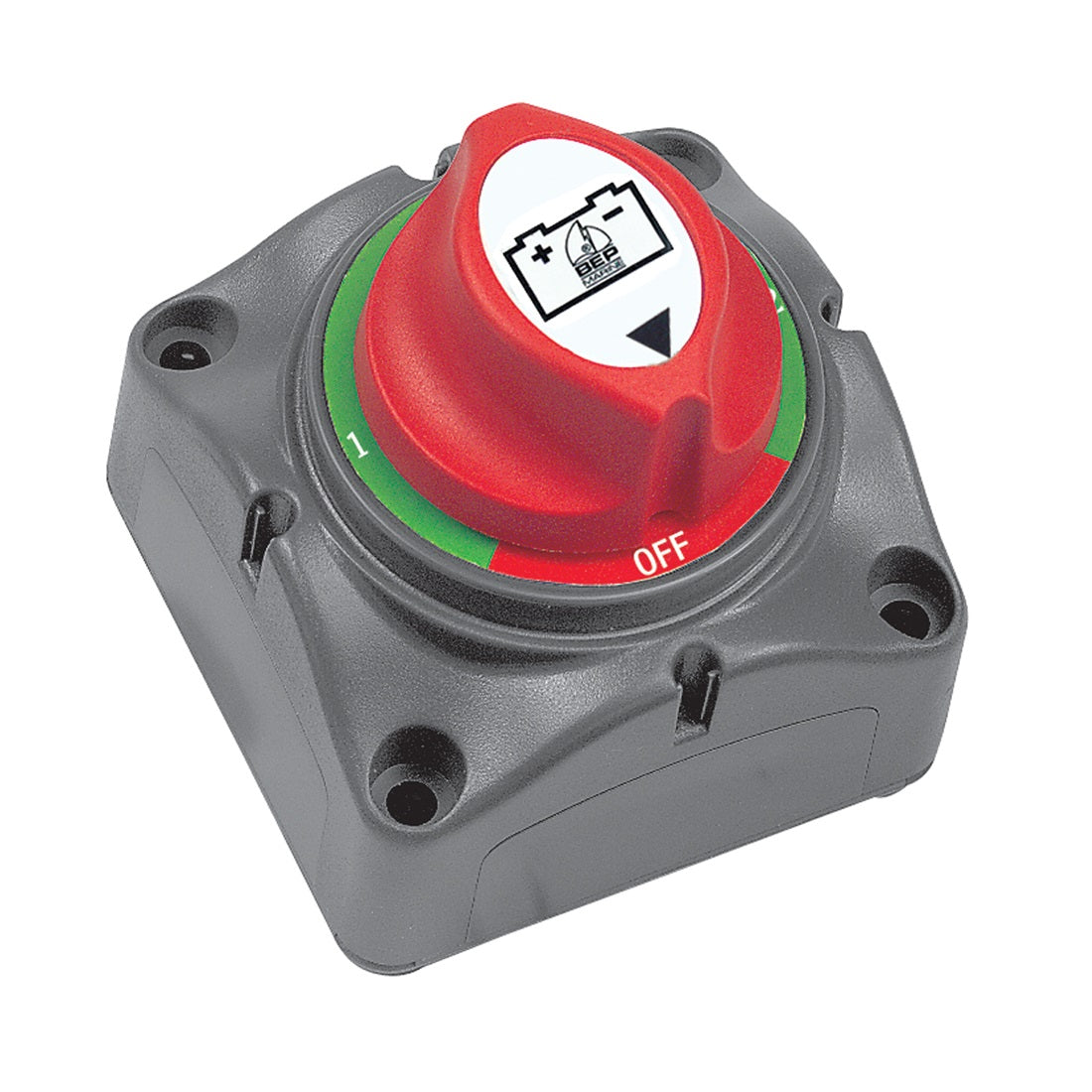

Mini Battery Selector Switch On-Off-Both
وصف
The 701S-B is the most compact selector switch available on the market.
While BEP recommends isolated battery systems as outlined with our distribution clusters, the 701S-B provides a simple economical way of separating two batteries.
BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds).
The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 deg C (212 deg F) above the ambient temperature.
The continuous and intermittent ratings are tested at 110 percent of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.
Housed in the same dimensions as the 701, and includes the same removable side plates and back cover.
Please note selector switches will not separate electronics from harmful engine starting spikes.
Tin-plated copper studs and nuts.
Ignition-protected.
Continuous Rating : 200 Amps DC.
Intermittent Rating : 300 Amps DC.
Cranking Rating : 1000 Amps DC.
Voltage Rating : 48V DC.
Operation : 1 - 2 - both - off.
Dimensions : (2.75 x 2.75 x 3h inches).
While BEP recommends isolated battery systems as outlined with our distribution clusters, the 701S-B provides a simple economical way of separating two batteries.
BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds).
The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 deg C (212 deg F) above the ambient temperature.
The continuous and intermittent ratings are tested at 110 percent of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.
Housed in the same dimensions as the 701, and includes the same removable side plates and back cover.
Please note selector switches will not separate electronics from harmful engine starting spikes.
Tin-plated copper studs and nuts.
Ignition-protected.
Continuous Rating : 200 Amps DC.
Intermittent Rating : 300 Amps DC.
Cranking Rating : 1000 Amps DC.
Voltage Rating : 48V DC.
Operation : 1 - 2 - both - off.
Dimensions : (2.75 x 2.75 x 3h inches).
Mini Battery Selector Switch On-Off-Both
سعر البيع12.500 KD
