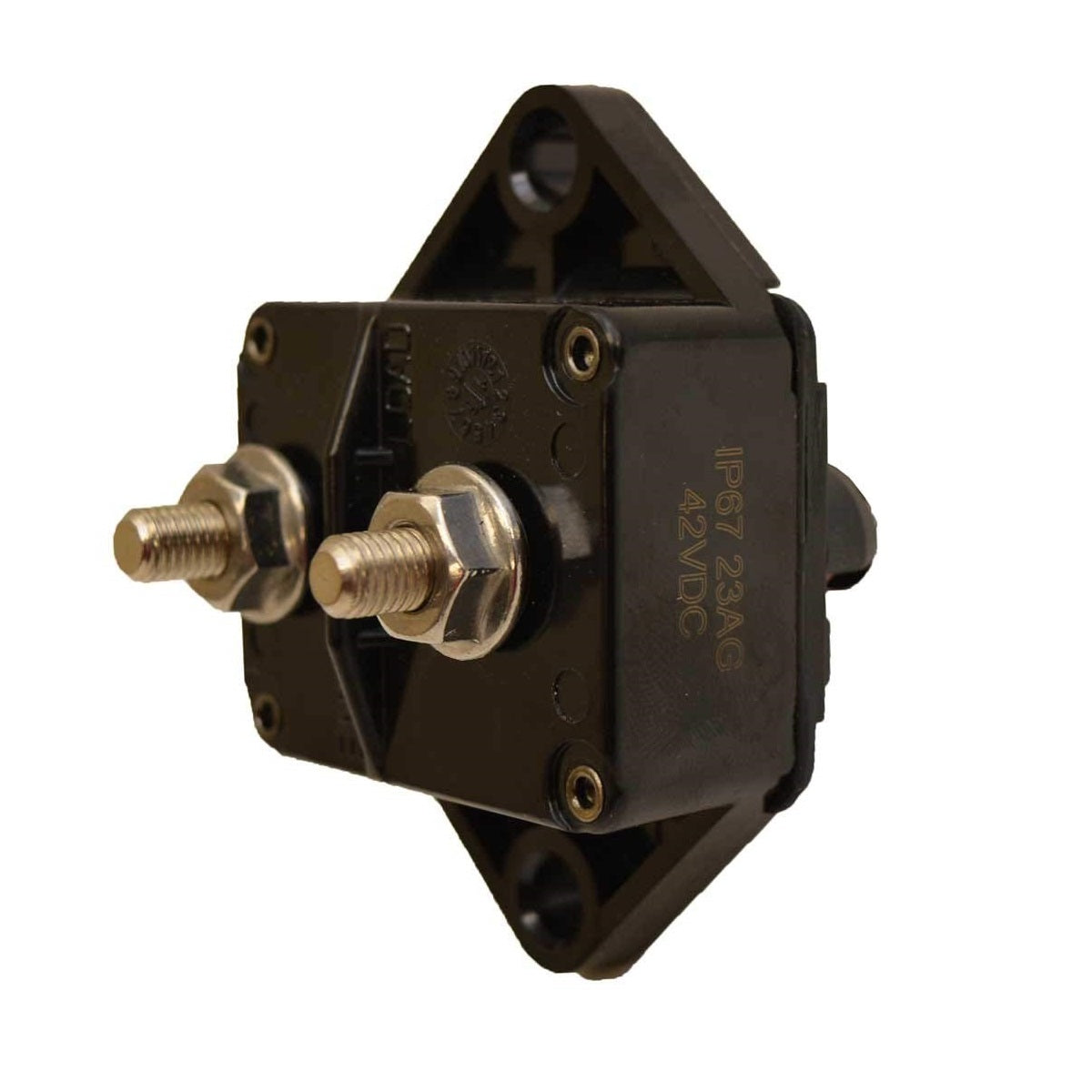

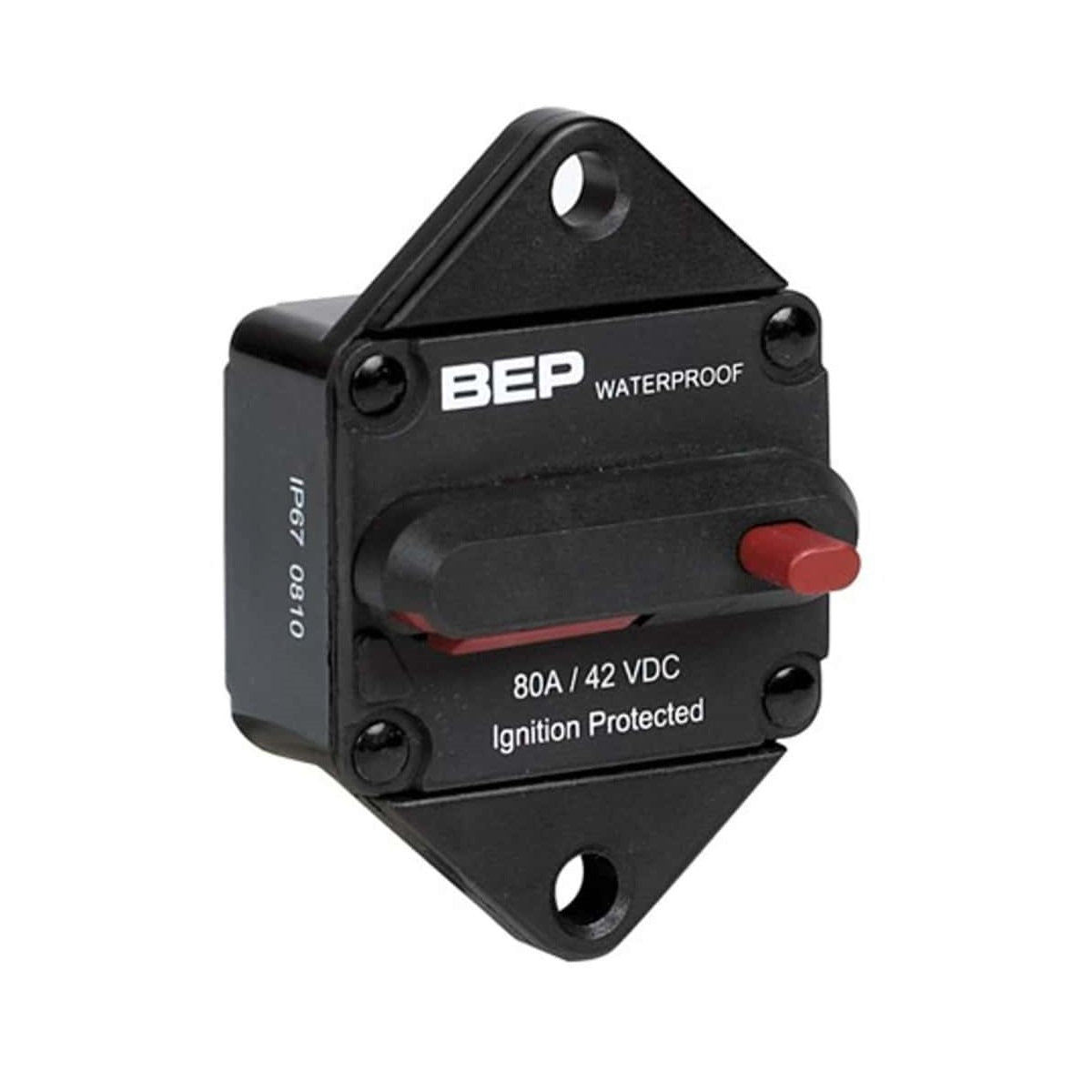

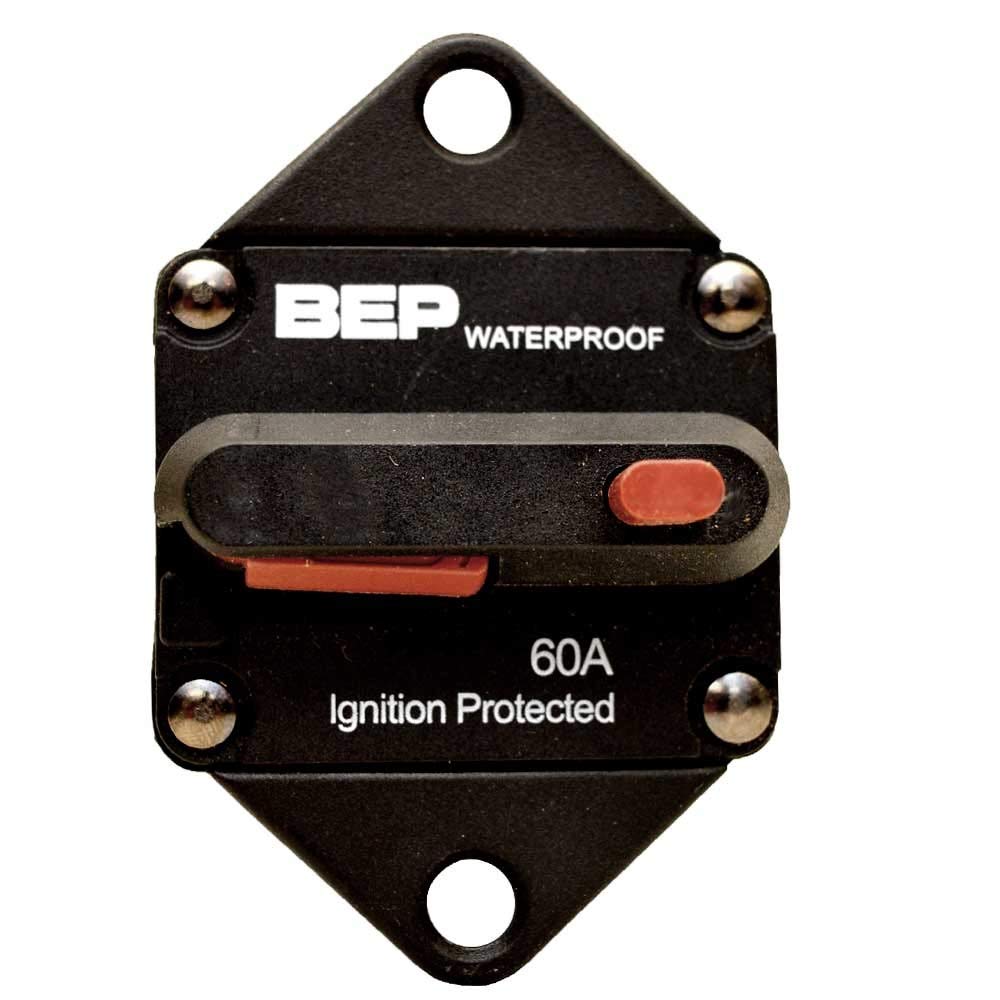

Panel Mount Thermal Circuit Breaker
وصف
Single pole thermal type switchable reset circuit breakers. Typically used in auxiliary and accessory circuits. Sealed for engine compartment and bilge area applications.
Ratings: 30–150A; 30V DC.
Interrupt Capacity: 3000A.
Operating Temperature: -25°F (-32°C) to 180°F (82°C).
Storage Temperature: -30°F (-34°C) to 300°F (149°C).
Applications: Auxiliary and accessory circuits – trucks, buses, RVs and marine applications, battery chargers and DC audio systems. Series 184 & 185 are sealed for engine compartment and bilge area applications.
Housing: Thermoset plastic; UL rated 94VO; 311ºF (155ºC). Stud insulators are provided on covered units with F (Surface Mount) bases; tin plated copper studs, brass rivets and stainless steel locking nuts.
Mounting: Panel or surface.
Terminal Stud Torque: 50 in-lb (5.6Nm) max.
Indicator: Series 184 & 185 have a unique reset mechanism providing visible indication of tripped condition.
Ingress Protection Rating: IP67.
Ratings: 30–150A; 30V DC.
Interrupt Capacity: 3000A.
Operating Temperature: -25°F (-32°C) to 180°F (82°C).
Storage Temperature: -30°F (-34°C) to 300°F (149°C).
Applications: Auxiliary and accessory circuits – trucks, buses, RVs and marine applications, battery chargers and DC audio systems. Series 184 & 185 are sealed for engine compartment and bilge area applications.
Housing: Thermoset plastic; UL rated 94VO; 311ºF (155ºC). Stud insulators are provided on covered units with F (Surface Mount) bases; tin plated copper studs, brass rivets and stainless steel locking nuts.
Mounting: Panel or surface.
Terminal Stud Torque: 50 in-lb (5.6Nm) max.
Indicator: Series 184 & 185 have a unique reset mechanism providing visible indication of tripped condition.
Ingress Protection Rating: IP67.
Panel Mount Thermal Circuit Breaker
سعر البيع19.000 KD
