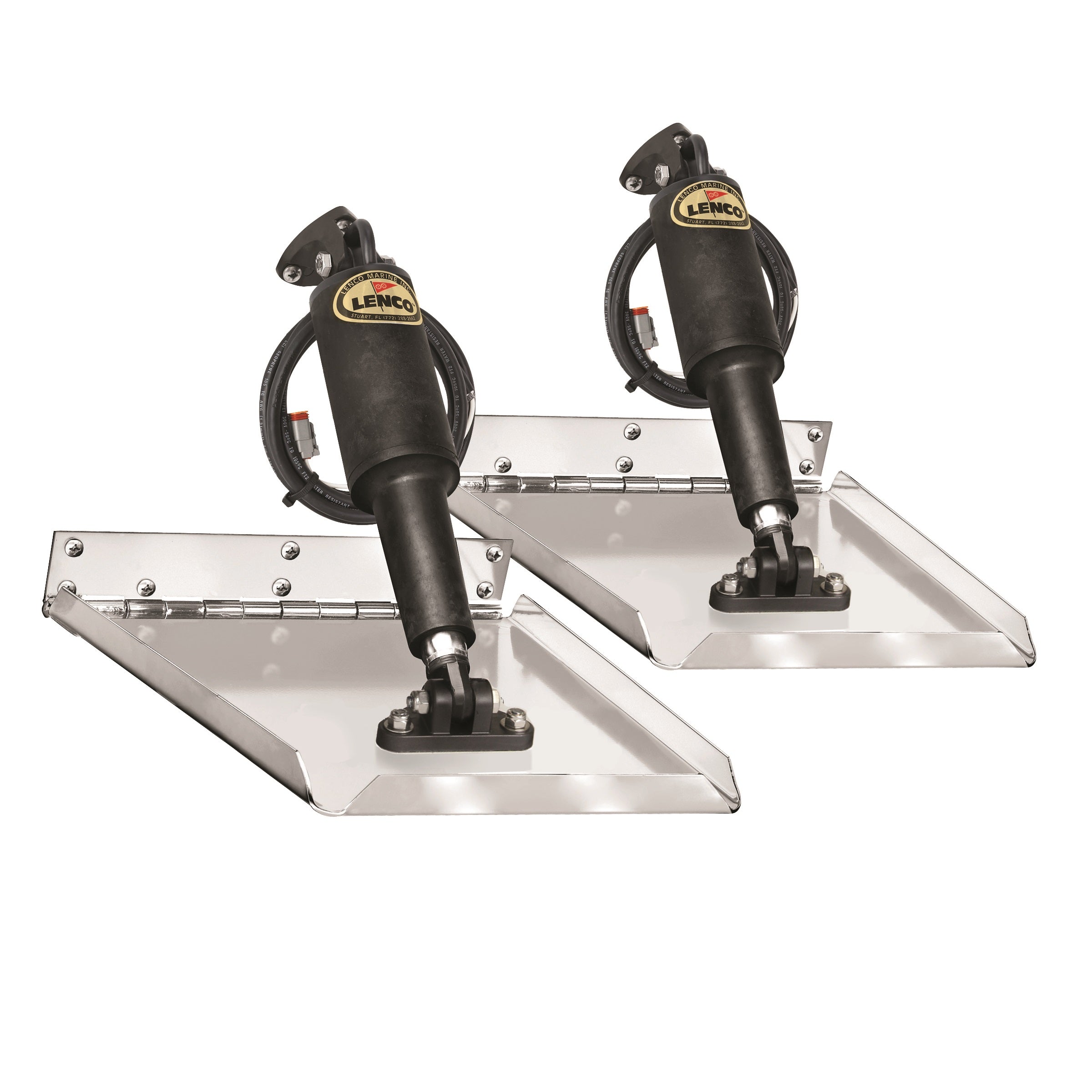

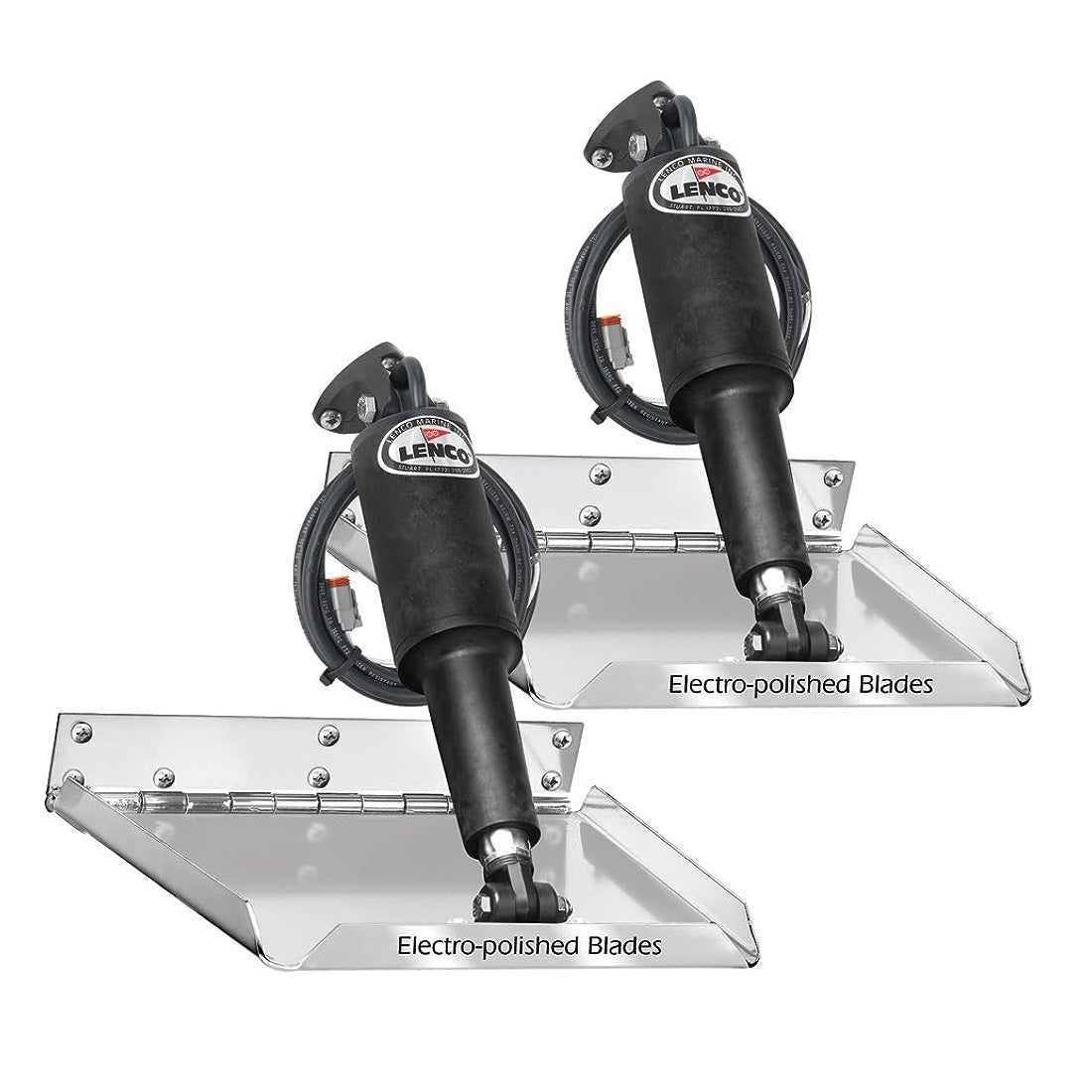

16" x 12" Trim Tab Kit without Switch

Our first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1” (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4” (6.4 mm) diameter hinge pin.
 Size :   16" L x 12" W.
Voltage : 12V.
Boat Length : 20' - 36'.
Hinge Height :  2" (5.1 cm).
Min.Transom Height : 11" (27.9 cm).
(2) 12-gauge stainless steel Electro-Polished blades.
(2) 15054-001 actuators with 6’ (1.8 m) leads & Deutsch connectors.
(2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length.
(2) 15085-001 upper mounting brackets with gland seal.
(2) 50014-001 lower mounting brackets.
Lenco owner's/installation manual.
Stainless steel mounting hardware.
