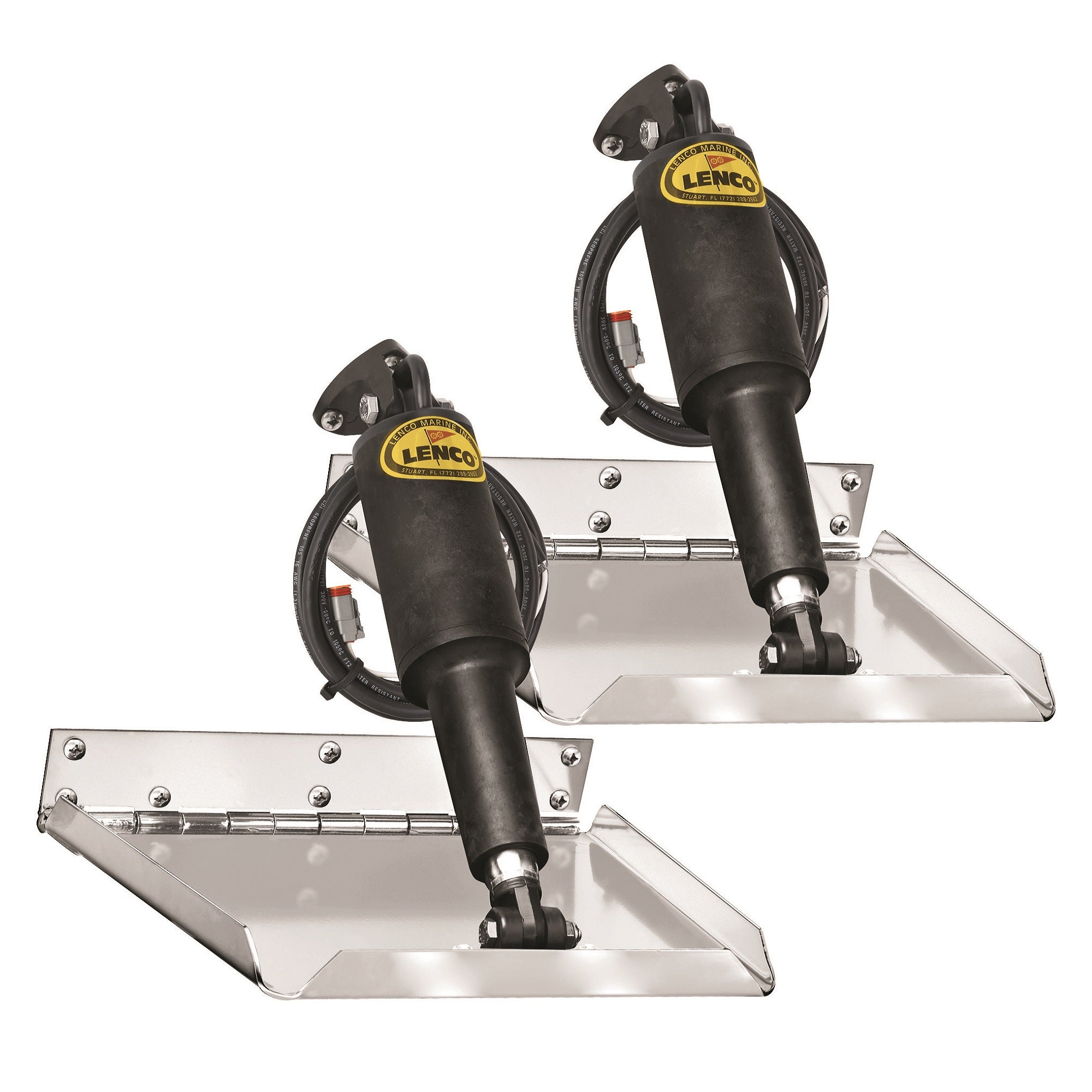

9" x 9" Trim Tab Kit without Switch
Description
Our first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection.
Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1” (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4” (6.4 mm) diameter hinge pin.
Size : L" X W": 9" x 9".
Voltage: 12V.
Boat Length : 13' - 20'.
Hinge Height : 2" (5.1 cm).
Min.Transom Height : 13.5" (34.3 cm).
Each kit contains :
(2) 12-gauge stainless steel Electro-Polished blades.
(2) 15054-001 actuators with 6’ (1.8 m) leads & Deutsch connectors.
(2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length.
(2) 15085-001 upper mounting brackets with gland seal.
(2) 50014-001 2, Lower Mounting Bracket All Necessary stainless steel mounting Hardware.
Lenco owner's/installation manual, Stainless steel mounting hardware.
Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1” (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4” (6.4 mm) diameter hinge pin.
Size : L" X W": 9" x 9".
Voltage: 12V.
Boat Length : 13' - 20'.
Hinge Height : 2" (5.1 cm).
Min.Transom Height : 13.5" (34.3 cm).
Each kit contains :
(2) 12-gauge stainless steel Electro-Polished blades.
(2) 15054-001 actuators with 6’ (1.8 m) leads & Deutsch connectors.
(2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length.
(2) 15085-001 upper mounting brackets with gland seal.
(2) 50014-001 2, Lower Mounting Bracket All Necessary stainless steel mounting Hardware.
Lenco owner's/installation manual, Stainless steel mounting hardware.
9" x 9" Trim Tab Kit without Switch
Sale price248.000 KD
